1. Working temp: heat pump low temperature at 35-40 degree.2. Treatment effect:Good quality of condensation water and can get into post treatment directly.
3. Scaling: Not easy to produce the scaling and the machine has the automatic cleaning system.
4. Automatic: Remote control with low manpower.
5. Operation cost: Lower temperature, lower energy consumption and waste.
6. Maintenance: Lower scaling, easier cleaning and maintenance.
7. Occupation: small size and less occupation.
8. Easier installation and just connect with the electricity and water.
Low Temperature Vacuum Evaporator High-Efficiency Distillation Industries Wastewater Concentration Reduction Machine
This is a fully automated system suitable to treat range of industrial applications like oily emulsions, RO waste water, landfill leachate, etc. It generates premium grade distillate, reduces waste volume, has low maintenance and low operating costs.
Description
Product Description
Low Temperature Vacuum Evaporator High-Efficiency Distillation Industries Wastewater Concentration Reduction Machine
The low-temperature heat pump vacuum evaporator is designed to meet diverse customer requirements and operating conditions through the development of various equipment models. The V-HP-SF series evaporator operates by using a compressor to act on the refrigerant, We are a factory of making the evaporator and crystallizer machine on wastewater treatment machine and biological fermentation concentration and purification machine. The boiling chamber is negative at -95-97kpa under vacuum condition, raw material can be sucked into the chamber under negative pressure. Meanwhile, the heat pump system will makes heat exchange device into evaporation and condensation into two parts. Circulation system sprays raw wastewater onto the evaporation part nebulized. Water become steam after evaporation and rise to condensing become condensate. The condensate flows to condensation vessel and the concentration remains in boiling chamber, finally they will discharge automatically when reach pre-setted rate. A key feature of this series is low consumption and less land occupation compared to other models and relatively simple equipment structure and easy to be operated. It can be used just requiring the water and electricity. Less installation and more convenient.
Model |
Evaporative Power
(L/h)
|
Installed Power
(kW)
|
Consumption
(W/L)
|
Dimension
(LxBxH m)
|
V-HP1000 |
45 |
9.83 |
100-120 |
3.0x0.9x2.8 |
V-HP2500 |
110 |
18.13 |
80-100 |
3.8x1.2x3.0 |
V-HP5000 |
216 |
34.5 |
80-100 |
4.0x1.6x3.2 |
V-HP8000 |
336 |
48 |
80-100 |
4.3x1.8x3.4 |
V-HP10000 |
440 |
64.35 |
60-100 |
4.5x2.0x3.6 |
V-HP15000 |
625 |
90 |
60-100 |
6.0x3.0x3.7 |
V-HP20000 |
870 |
125 |
60-100 |
6.0x3.2x3.8 |
V-HP25000 |
1050 |
150 |
60-100 |
7.0x3.2x3.8 |
V-HP30000 |
1250 |
180 |
60-100 |
7.0x3.2x4.0 |
V-HP35000 |
1450 |
195 |
60-100 |
7.0x3.2x4.0 |
Details Images
Machine material
Machine mainly use SUS304 or SUS316 material or duplex steel and titanium, can be customized based on customer's requirments. The surfact of the low temperature vacuum evaporator has been polished.
Electrical element
All the spare parts adopt high quality brand. It is more durable and long service life.

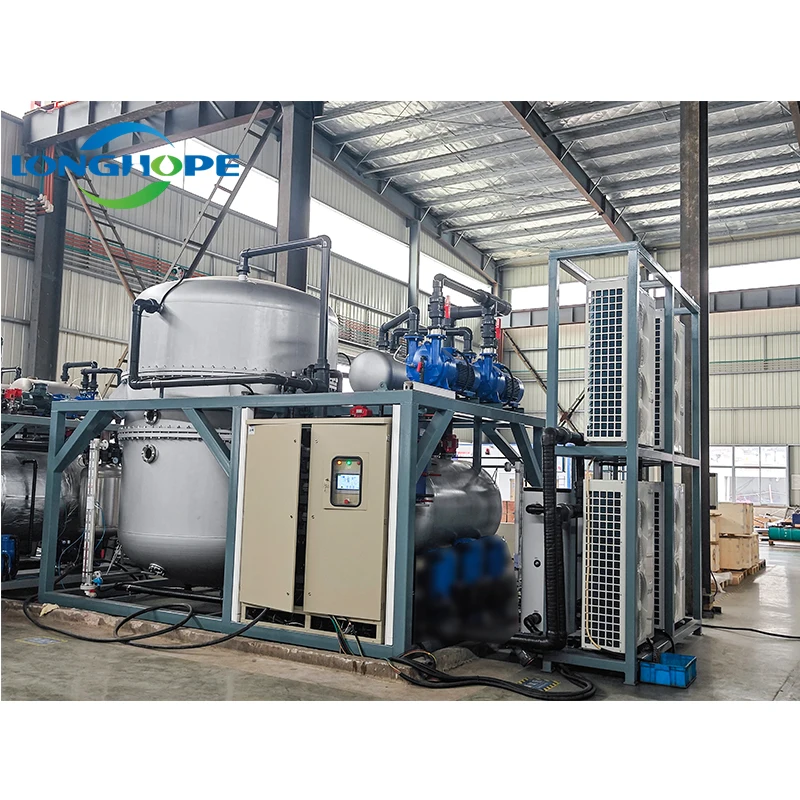

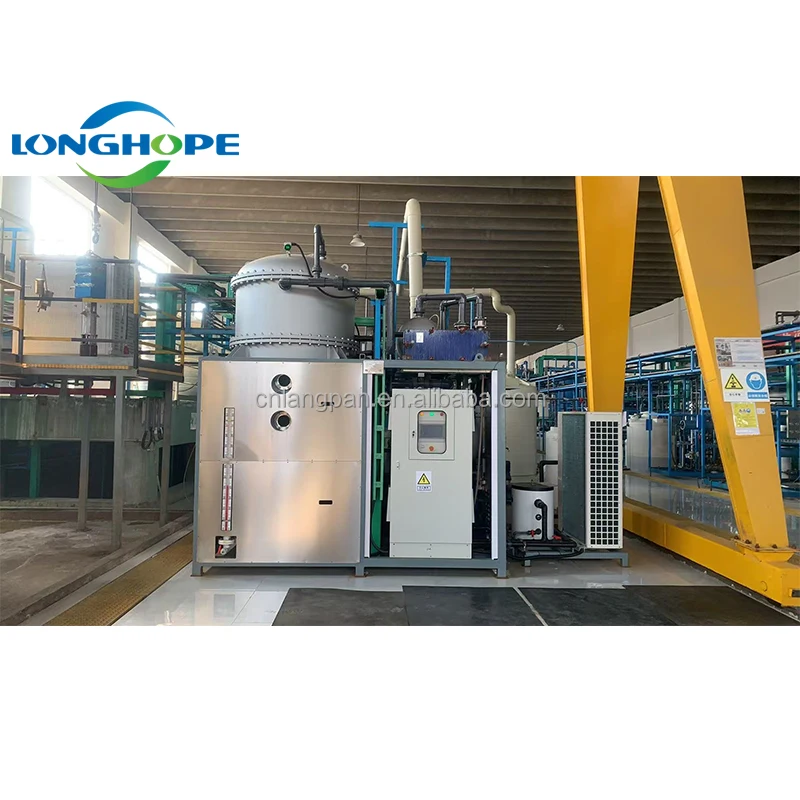

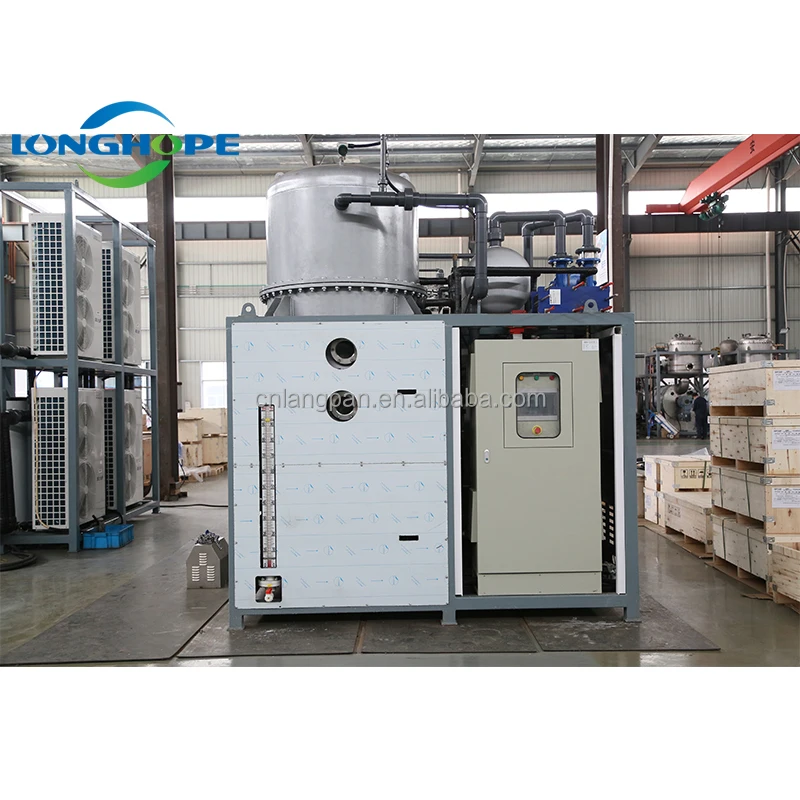

The whole set evaporator machine
No need the feeding pump and about 10 meter distance, it can be sucked into the chamber directly.Less installation, just need the electricity and water.
Heat pump
Would be equipped with the heat pump. if the ambient temperature is below or above the boiling point. a heat pump is needed to achieve a balance between cooling in summer and heating in winter.
Products":[1601399778253,1601397762856,1601395310344,1601388142426]}}},"version":1}' class="icbu-pc-detailSellerRecommend magic-35">
Compared with traditional evaporation
Our Company
Wuxi Longhope environmental machinery co., ltd is located in wuxi, Nanhu road, which is close to shanghai city. We are a
professional factory that is specializing in the low temperature vacuum evaporator and crystalizer series for more than 10 years. Evaporators and crystallizers play an important role in many fields such as chemical industry, food and environmental protection. Used for evaporation and crystallization of various chemical raw materials; In the field of food, achieve the concentration of food raw materials, crystallization and other processing links; In the field of environmental protection, industrial wastewater is effectively treated to achieve environmental protection discharge standards and even zero discharge. The equipment can run automatically through PLC control and can run continuously and stably for a long time. The operator only needs to perform simple Settings and monitoring at the control end to ensure the normal operation of the equipment, reduce the complexity and labor intensity of manual operation, and improve production efficiency.
professional factory that is specializing in the low temperature vacuum evaporator and crystalizer series for more than 10 years. Evaporators and crystallizers play an important role in many fields such as chemical industry, food and environmental protection. Used for evaporation and crystallization of various chemical raw materials; In the field of food, achieve the concentration of food raw materials, crystallization and other processing links; In the field of environmental protection, industrial wastewater is effectively treated to achieve environmental protection discharge standards and even zero discharge. The equipment can run automatically through PLC control and can run continuously and stably for a long time. The operator only needs to perform simple Settings and monitoring at the control end to ensure the normal operation of the equipment, reduce the complexity and labor intensity of manual operation, and improve production efficiency.
Our Certifications

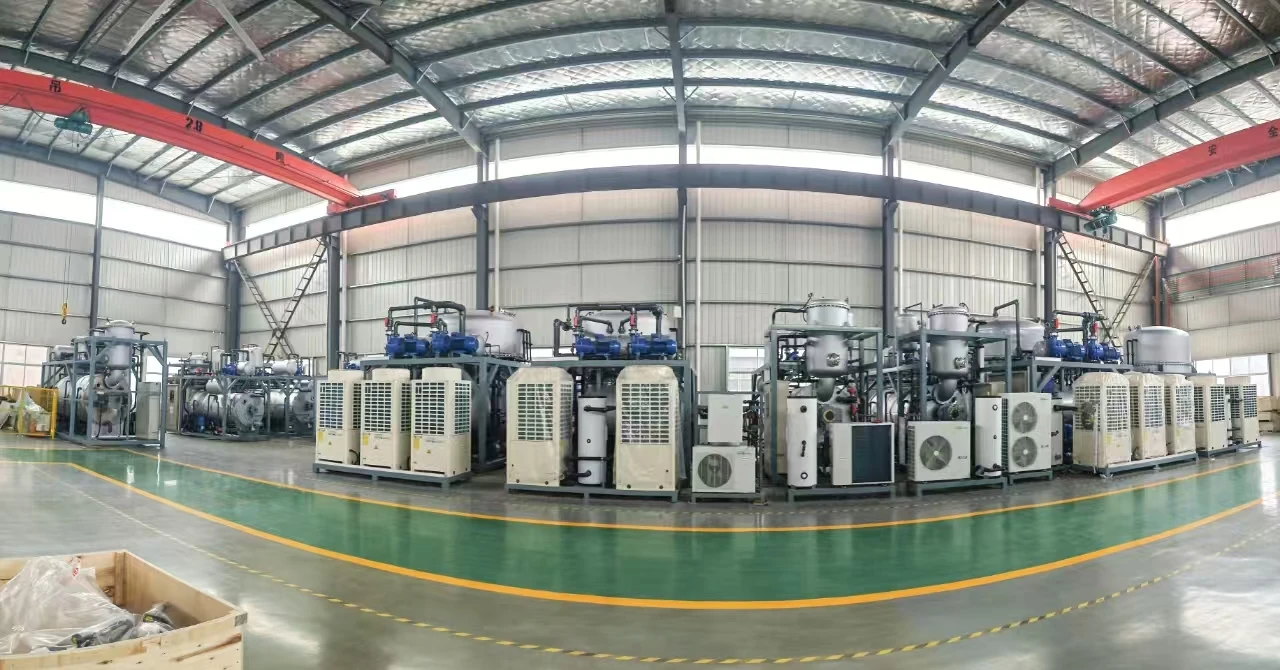

Factory picures
